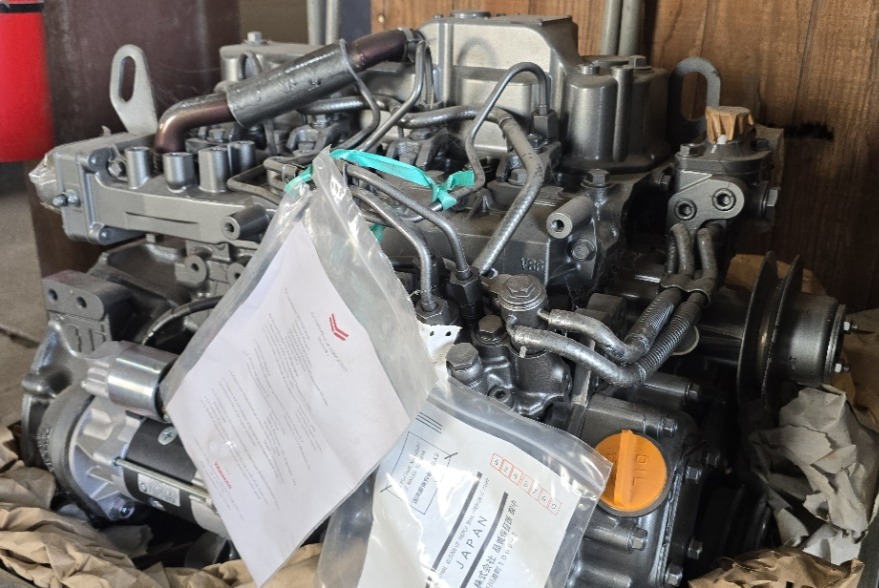

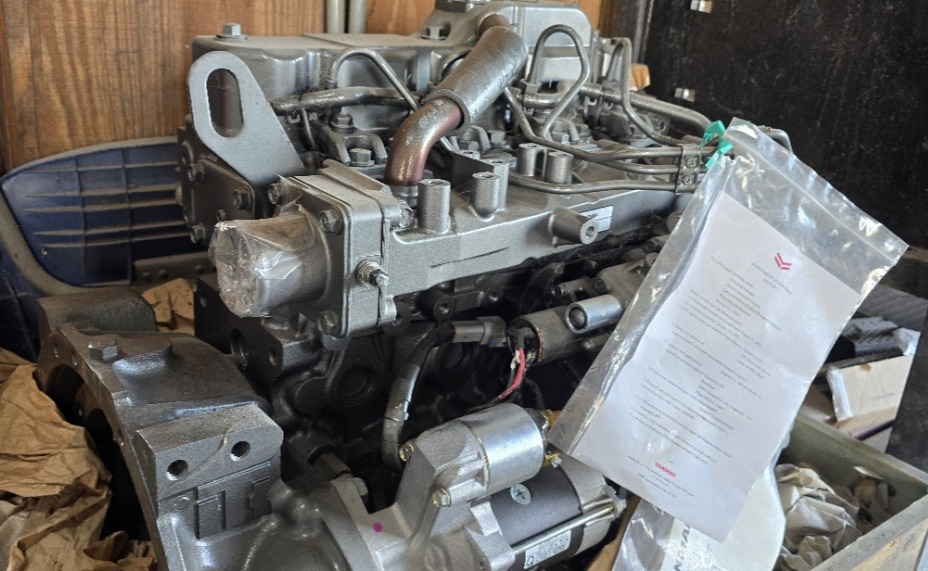

Brand New, Only One Available In Crate, Never Been Install, THERMOKING – TK486VR Engine Complete (TKC PART NUMBER 810-1398 / SUPERCEDED TO 810-1428), Engine Specs As Follows:
- Core Engine Specifications
- Type: 4-cycle, vertical in-line diesel engine.
- Cylinders: 4.
- Displacement: Approximately 2.1L.
- Bore: 3.38 in (86.00 mm).
- Stroke: 3.54 in (90.00 mm).
- Firing Order: 1-3-4-2.
- Compression: Certified Tier 4 emission standard
Performance & Operating Settings- High Speed: 2200 ± 25 rpm.
- Low Speed: 1450 ± 25 rpm.
- Oil Pressure:
- Minimum (Low Speed): 18 psi (127 kPa).
- High Speed: 45 to 57 psi (310 to 390 kPa).
- Injection Timing: 10 Degrees BTDC (timed on No. 1 cylinder).
Maintenance & Capacities- Oil Capacity: 13 qt (12.3 liters) crankcase.
- Coolant Capacity: 7.5 qt (7.1 liters).
- Valve Clearance (Intake/Exhaust): 0.006 to 0.010 in (0.15 to 0.25 mm).
- Torque Specs (Head Bolts): Stage 1: 30 Nm; Stage 2: 60 Nm; Final: 90° angle torque.
Common Application To Be Use On:
- Most Of Thermoking Trailer Units: SB models as of SB110, SB130, SB210, SB230, SB400, SBIII, SPECTRUM SB, earlier version of Precedent C & S series … and more
- Most Of Thermoking Gensets: Most of ThermoKing genset as of SGCM 2000, SGCM 3000, SGCO 2000 … and more
Warranty:
- No warranty from either Yenmar / ThermoKing
- 90 days warranty from Quality Reefer Service Inc
- One year (1) warranty from Quality Reefer Service Inc if we (QRS) installed it
